Coilovers (Screw suspension) KIDO Racing.
KIDO Racing develops complete vehicle suspension solutions that can be easily adjusted using special screws.
Some models allow you to adjust the suspension stiffness and ride height of the car at the same time.
A specially designed KIDO Racing spring and shock absorber serve as suspension elements, performing separate functions.
The KIDO Racing helical suspension ensures comfortable movement of the car on uneven surfaces, elastic coupling between the body part and the wheels.
The KIDO Racing adjustable screw suspension is a shock absorber with a thread applied to the body or bushing, the bushing is put on the shock absorber. Upper and lower stops are installed on the body. A spring is placed between the stops. The bottom stop moves along the threaded surface.
Coilovers
— this is an easy and quick installation, express adjustment using a car tool, an additional ability to adjust the clearance without dismantling the suspension, additional stiffness adjustments, affordable price, reliability and long service life.

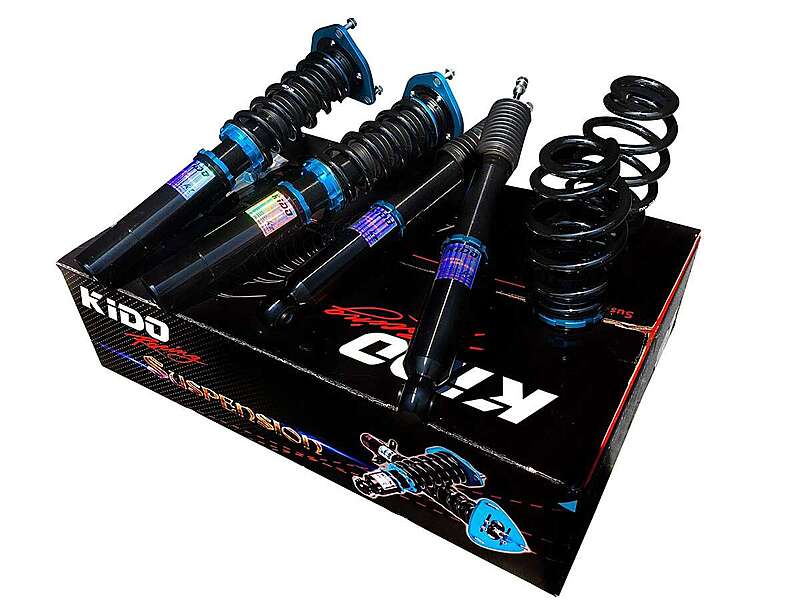

The screw suspension kit consists of:
shock absorber.
Upper stop (adjustable or non-adjustable for camber).
Lower movable stop with internal thread. The shock absorber, screwing into the stop, reduces the ground clearance of the car.
Locknut of the lower stop for fixing the height of the shock absorber strut, adjusting the clearance.
The coil spring is the main functional element of the coilover. The rigidity of the element is selected depending on the type of suspension.
Spring limiter screwed onto the shock absorber strut. The knurled stopper is supported by a locknut to adjust the spring preload.
A key and a hole for damping adjustment in the upper part of the shock absorber strut.
Locknut of the spring limiter with notches for a key, fixes the position of the limiter.
