Turbosystems Upgrade Turbocharger for BKD / AZV Engines Audi / Skoda / VW 2.0 TDI

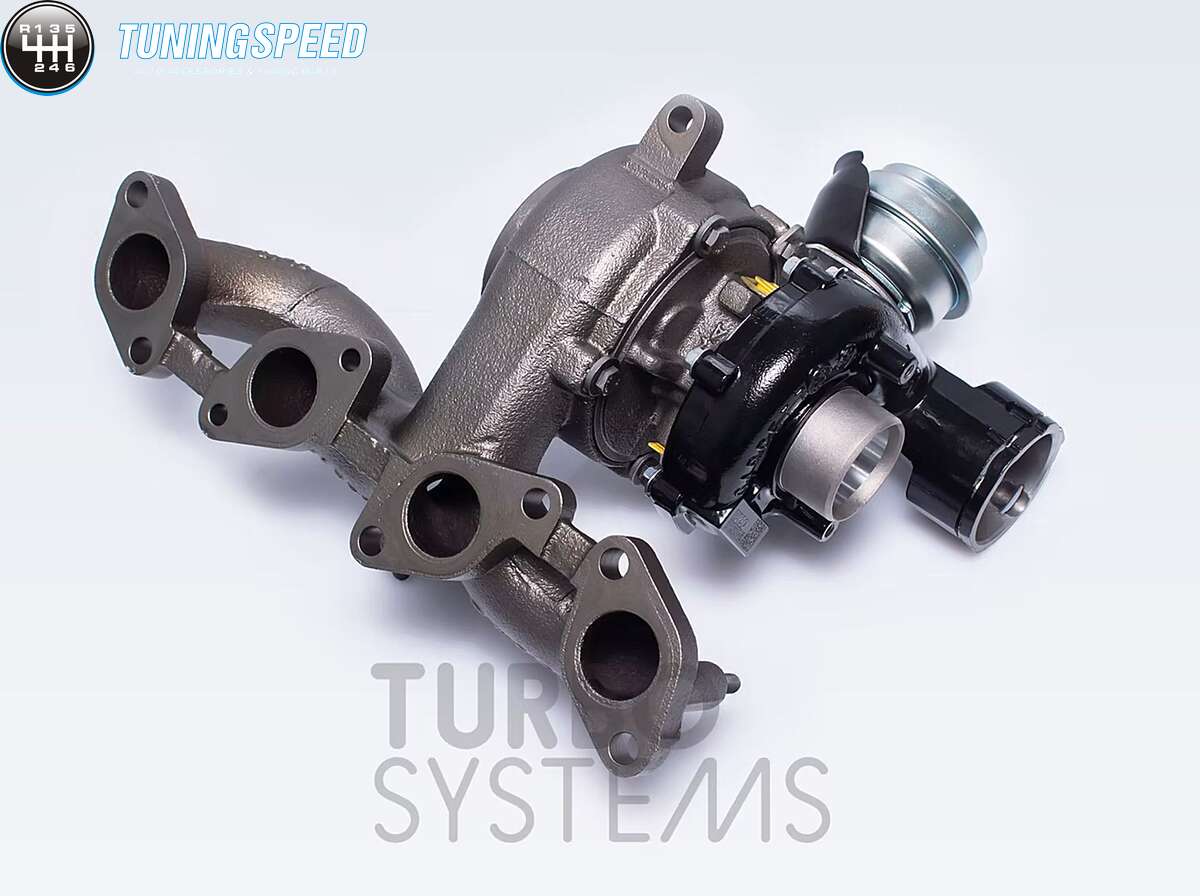

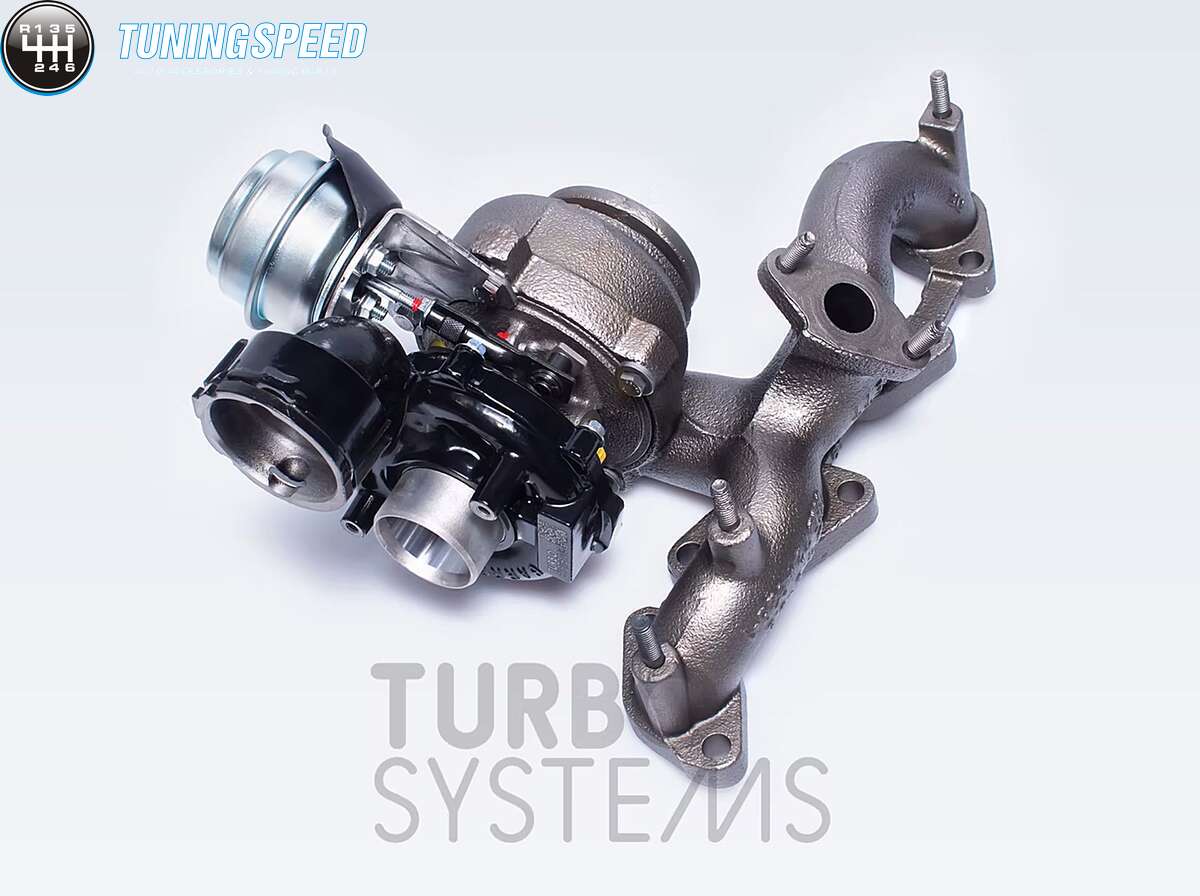

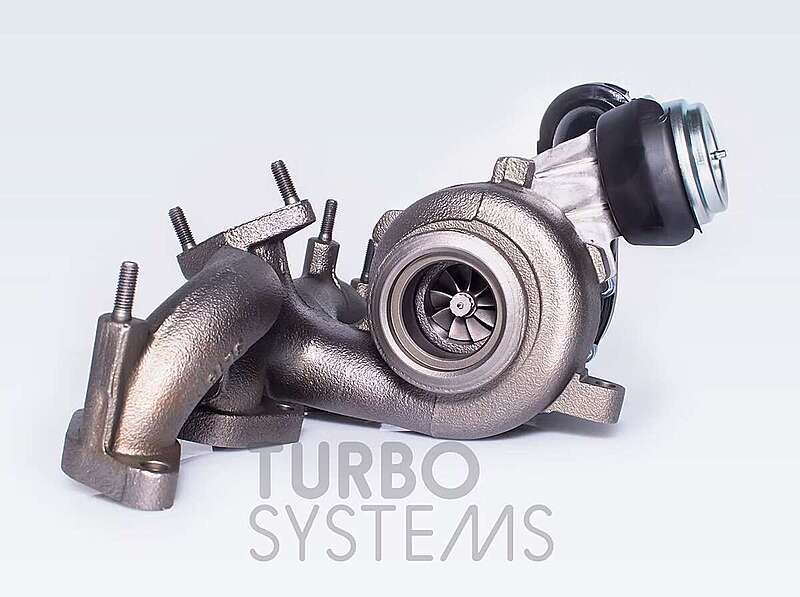

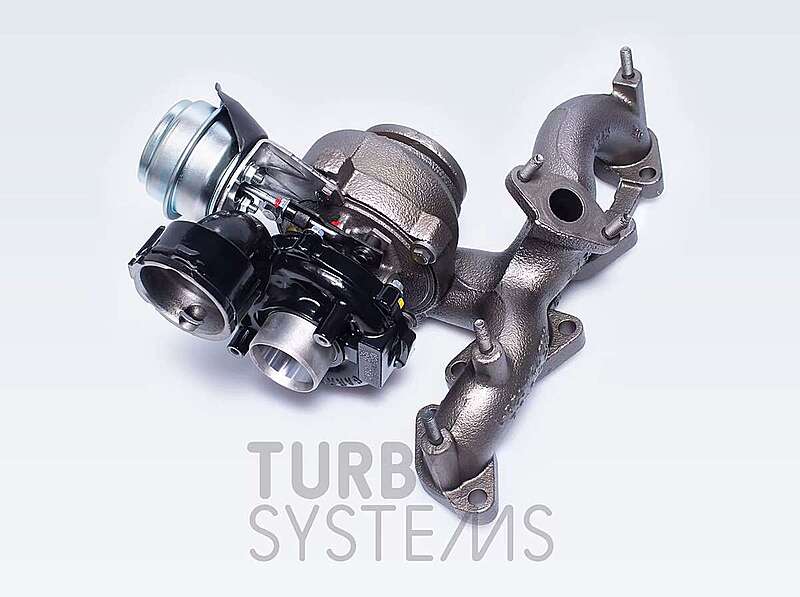

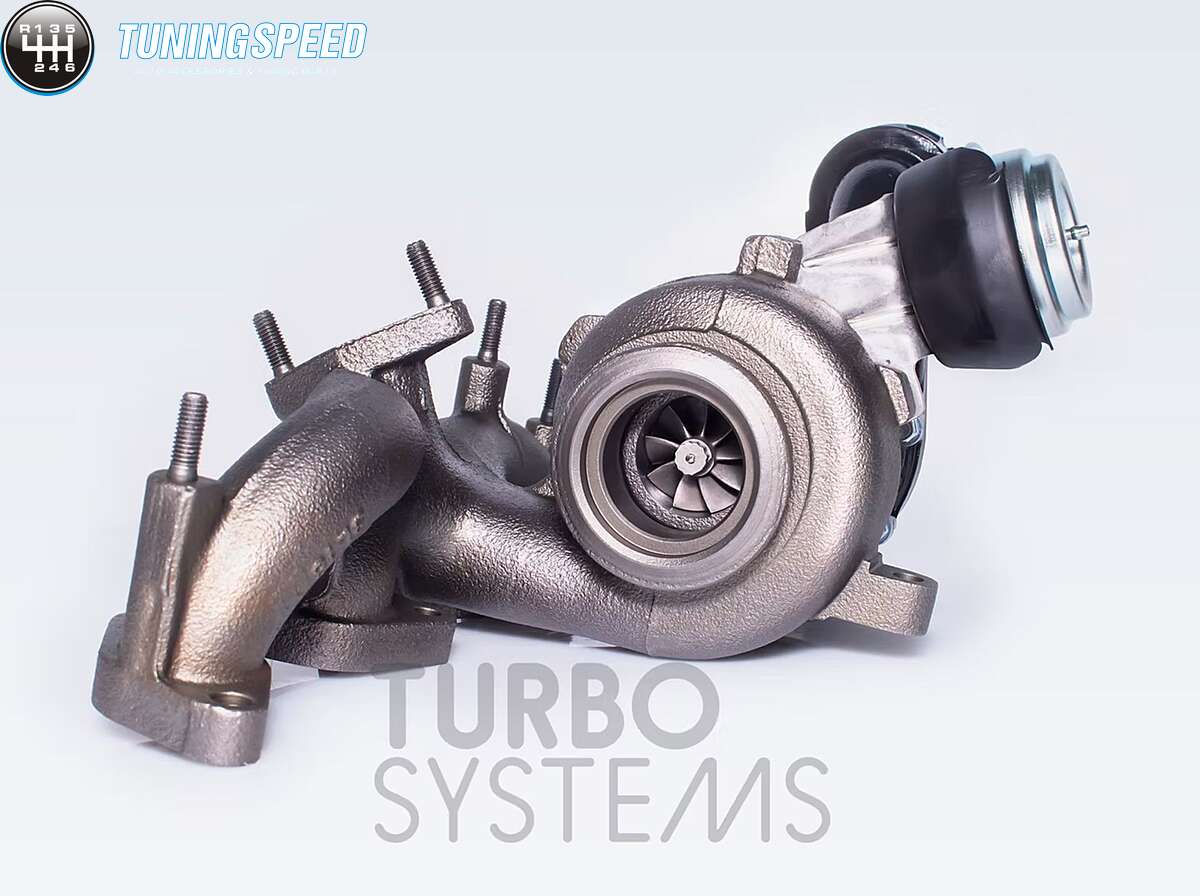

Bolt-on hybrid turbocharger for Audi / Seat / Skoda / VW 2.0 TDI upgrade turbocharger for BKD / AZV engine.
Designed to work with stock exhaust manifold and other engine units. Specifications and compatibility list written below.
Power range: 220+ HP
Turbosystems upgrade turbocharger for Audi / Skoda / Volkswagen 2.0 TDI features:
- Upgraded bearing system;
- CNC machined compressor housing;
- CNC machined turbine housing;
- Upgraded variable geometry nozzle;
- reinforced bigger machined from the solid compressor wheel — 39/52mm;
- enlarged high flow turbine wheel ;
- Refurbished housings;
- Flow bench adjusted;
- Balanced on VSR;
Power range: 220+ HP
| Model | Year | Engine code | Power (KW / HP) | Garrett nr. | OEM nr. |
| Audi A3 2.0 TDI (8P/PA) | 2003 — 2008 | BKD / AZV | 103 / 140 | 724930-5010S 724930-5009S 724930-9009S 724930-5008S 724930-0006 724930-0004 724930-0002 |
03G253014H 03G253014HX 03G253014HV 03G253019A 03G253019AX 03G253019AV 03G253010J |
| Seat Altea 2.0 TDI | 2004 — 2007 | BKD / AZV | 100 / 136 | 724930-5010S 724930-5009S 724930-9009S 724930-5008S 724930-0006 724930-0004 724930-0002 |
03G253014H 03G253014HX 03G253014HV 03G253019A 03G253019AX 03G253019AV 03G253010J |
| Seat Leon 2.0 TDI | 2005 — 2007 | BKD / AZV | 100 / 136 | 724930-5010S 724930-5009S 724930-9009S 724930-5008S 724930-0006 724930-0004 724930-0002 |
03G253014H 03G253014HX 03G253014HV 03G253019A 03G253019AX 03G253019AV 03G253010J |
| Seat Toledo III 2.0 TDI |
2004 — 2007 | BKD / AZV | 100 / 136 | 724930-5010S 724930-5009S 724930-9009S 724930-5008S 724930-0006 724930-0004 724930-0002 |
03G253014H 03G253014HX 03G253014HV 03G253019A 03G253019AX 03G253019AV 03G253010J |
| Skoda Octavia II 2.0 TDI |
from 2004 | BKD / AZV | 100 / 136 | 724930-5010S 724930-5009S 724930-9009S 724930-5008S 724930-0006 724930-0004 724930-0002 |
03G253014H 03G253014HX 03G253014HV 03G253019A 03G253019AX 03G253019AV 03G253010J |
| Volkswagen Golf V 2.0 TDI |
2003 — 2009 | BKD / AZV | 100 / 136 | 724930-5010S 724930-5009S 724930-9009S 724930-5008S 724930-0006 724930-0004 724930-0002 |
03G253014H 03G253014HX 03G253014HV 03G253019A 03G253019AX 03G253019AV 03G253010J |
| Volkswagen Passat B6 2.0 TDI |
2005 — 2008 | BKD / AZV | 100 / 136 | 724930-5010S 724930-5009S 724930-9009S 724930-5008S 724930-0006 724930-0004 724930-0002 |
03G253014H 03G253014HX 03G253014HV 03G253019A 03G253019AX 03G253019AV 03G253010J |
| Volkswagen Passat B6 2.0 TDI |
2005 — 2008 | BKP | 103 / 140 | 724930-5010S 724930-5009S 724930-9009S 724930-5008S 724930-0006 724930-0004 724930-0002 |
03G253014H 03G253014HX 03G253014HV 03G253019A 03G253019AX 03G253019AV 03G253010J |
| Volkswagen Touran 2.0 TDI |
from 2003 | AZV | 100 / 136 | 724930-5010S 724930-5009S 724930-9009S 724930-5008S 724930-0006 724930-0004 724930-0002 |
03G253014H 03G253014HX 03G253014HV 03G253019A 03G253019AX 03G253019AV 03G253010J |
| Volkswagen Touran 2.0 TDI |
from 2003 | BKD | 103 / 140 | 724930-5010S 724930-5009S 724930-9009S 724930-5008S 724930-0006 724930-0004 724930-0002 |
03G253014H 03G253014HX 03G253014HV 03G253019A 03G253019AX 03G253019AV 03G253010J |
793,00 € Add to cart
Include VAT: 143,00 €
